Our Aerospace Machine Shop

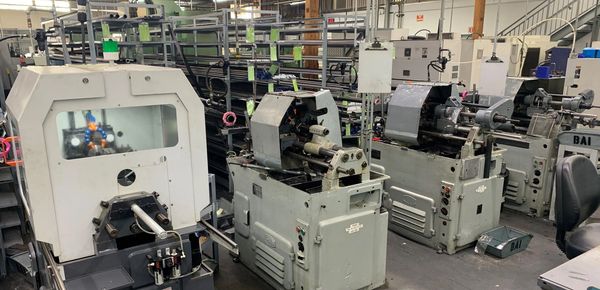

CUT OFF

  • Pneumatic feed Traub A42, A60 cut off machines
  • Utilization of Synchronized Spindles to eliminate secondary operations
  • Materials: INCO 718, A-286, MP35N, MP159, PH13-8MO, 15-5PH, 17-4PH, Titanium, Alloy steels and more
  • Capable of cutting off up to 4” diameter and more than 12” long

HOT HEADING

  • Hot Forging Bolts, Studs, Pins and more
  • Materials: INCO 718, A-286, MP35N, MP159, PH13-8MO, 15-5PH, 17-4PH, Titanium, Alloy steels and more
  • Capable of Hot Forging up to 4” Diameter INCO 18” long
  • Solid-state Induction heating with Optical Pyrometers

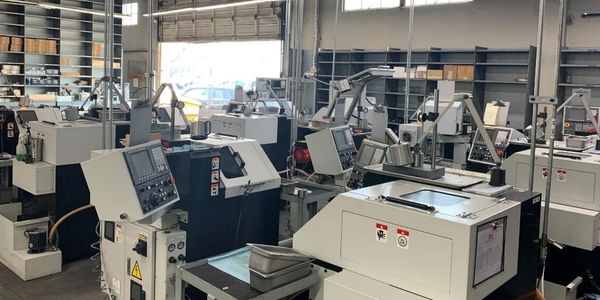

CNC LATHE

  • Machine Bolt Head, Shoulder, Point, Undercut, Thread Relief Groove, Internal and External Threads, Deep Hole Drilling, Boring, and more. Maximum O.D. is 8” and 18” long
  • Materials: INCO 718, A-286, MP35N, MP159, PH13-8MO, 15-5PH, 17-4PH, Titanium, Alloy steel and more
  • Statistical Process Control (SPC) via Infinity QS Software

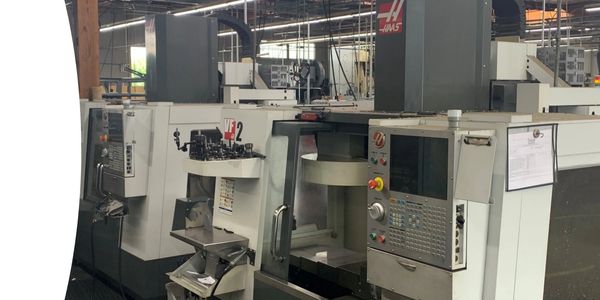

CNC Mill

  • 3 and 4 axis Milling and Drilling
  • Mill Hex, Flats, Slots, Pockets, Thru Hole, Blind Hole and more
  • Materials: INCO 718, A-286, MP35N, MP159, PH13-8MO, 15-5PH, 17-4PH, Titanium, Alloy Steel and more

GRIND

  • Centerless Grinding Bolts, Studs, Rods, Pins and more
  • Materials: INCO 718, A-286, MP35N, MP159, PH13-8MO, 15-5PH, 17-4PH, Titanium, Alloy steels and more
  • Capable of grinding up to 4” diameter and more than 12” long
  • Statistical Process Control (SPC) via Infinity QS Software available upon request

Fillet Roll

  • Fillet Rolling Bolts, Studs, Pins and more
  • Materials: INCO 718, A-286, MP35N, MP159, PH13-8MO, 15-5PH, 17-4PH, Titanium, Alloy steels and more
  • Capable of fillet rolling up to 4” diameter INCO

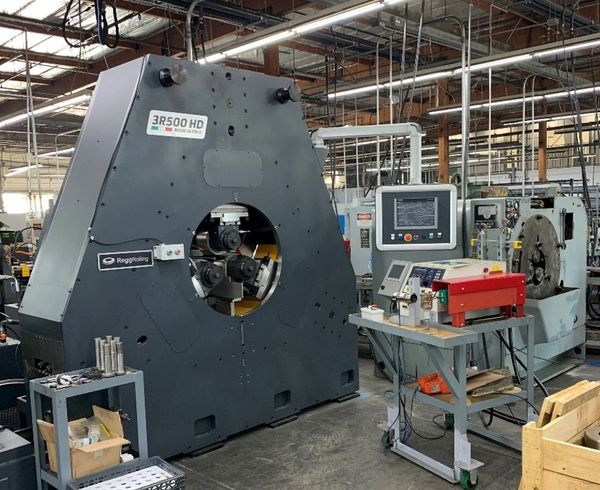

Thread Roll

  • Thread Rolling Bolts, Studs, Rods, Pins and more
  • Materials: INCO 718, A-286, MP35N, MP159, PH13-8MO, 15-5PH, 17-4PH, Titanium, Alloy Steels and more
  • Capable of thread rolling UNJF-3A up to 4.0000-12 threads (utilization of Johnson External Thread Gages)
  • Solid-state Induction heating with Optical Pyrometers
  • Statistical Process Control (SPC) via Infinity QS Software

Thermal Treatment

DFI Electric Titanium Shaker Furnace

  • Operating Temperature: 1550°F to 1800°F ±15°F
  • Capacity: 50 lbs/hour

  DFI Electric Age Furnace

  • Operating Temperature: 850°F to 1400°F ± 10°F
  • Capacity: 800 lb        Work Zone: 36” X 48” X 18”

 Vac-Aero Vacuum Furnace

  • Operating Temperature: 925°F to 2150°F ±25 °F
  • Capacity: 500 lb        Work Zone: 36” X 48” X 18”

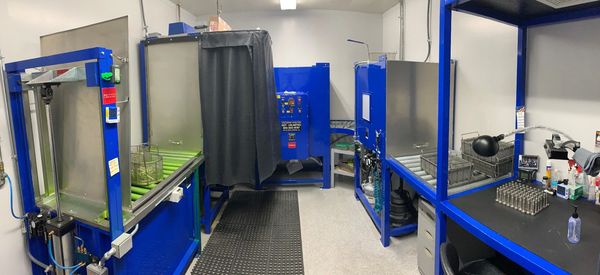

FLOURESCENT PENETRANT INSPECTION

  • NDT Unlimited Modular Fluorescent Penetrant Inspection System
  • Penetrant inspect in accordance with ASTM E 1417

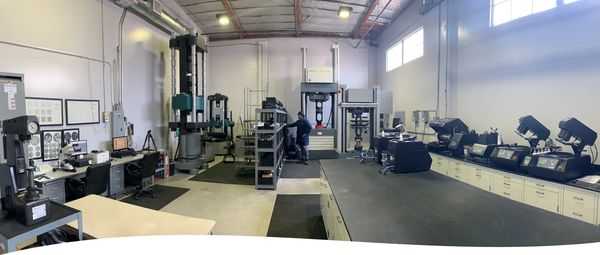

Materials Test Lab

ZwickRoellElectromagnetic Fatigue Testing Machines

  • 20,000 lb Load Capacity (90 kN)
  • 50,000 lb Load Capacity (225 kN)
  • 225,000 lb Load Capacity (1000 kN)

Tinius Olsen Hydraulic Tensile and Double Shear Testing Machines

  • 200,000 lb Load Capacity (900 kN)
  • 600,000 lb Load Capacity (2700 kN)

Allied High Tech Metallographic Preparation Equipment

Inspection

  • State-of-the-art Inspection Equipment
  • Only the best brands utilized at Briles
  • In-house Calibration
  • Calibration Recall Software
  • Statistical Process Control
